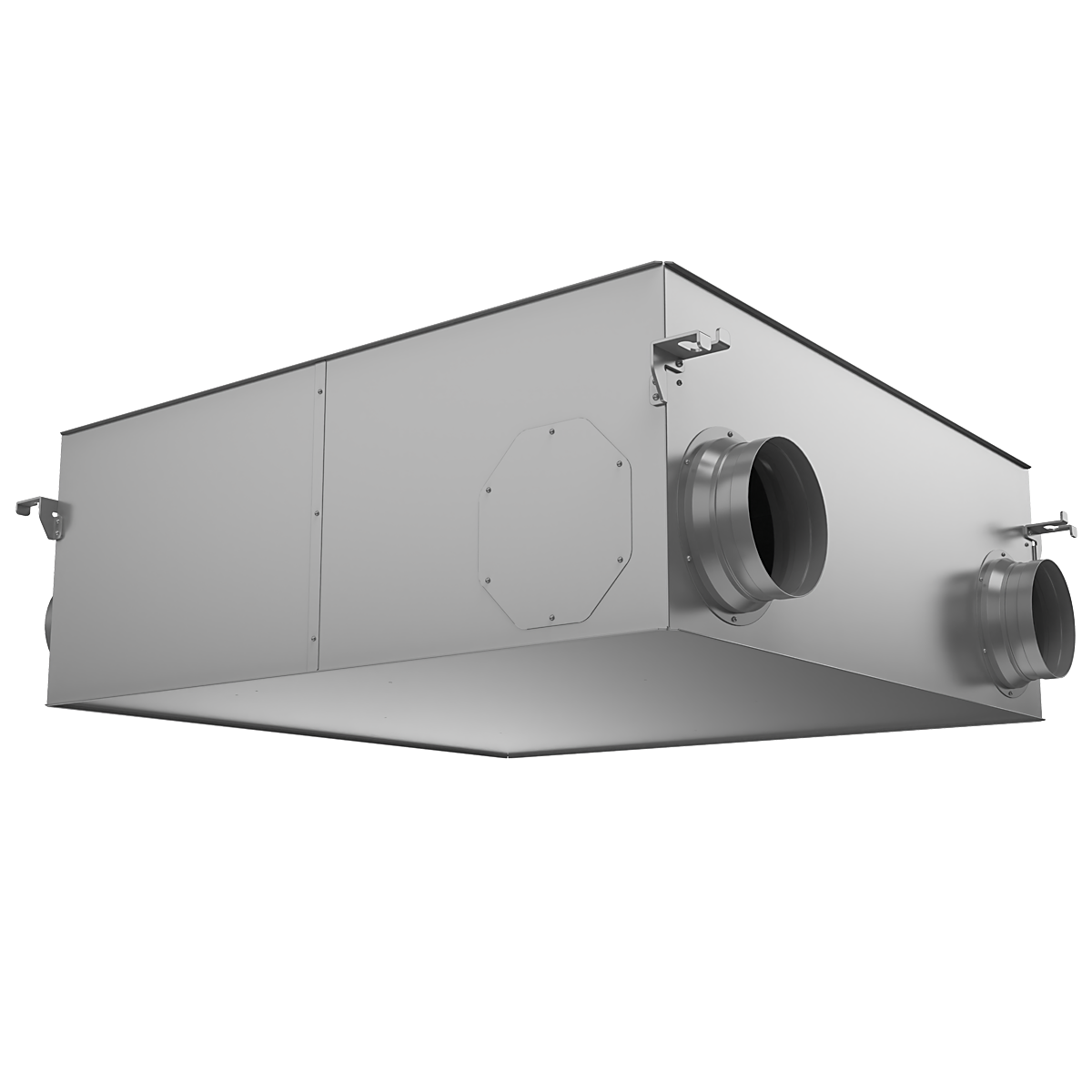

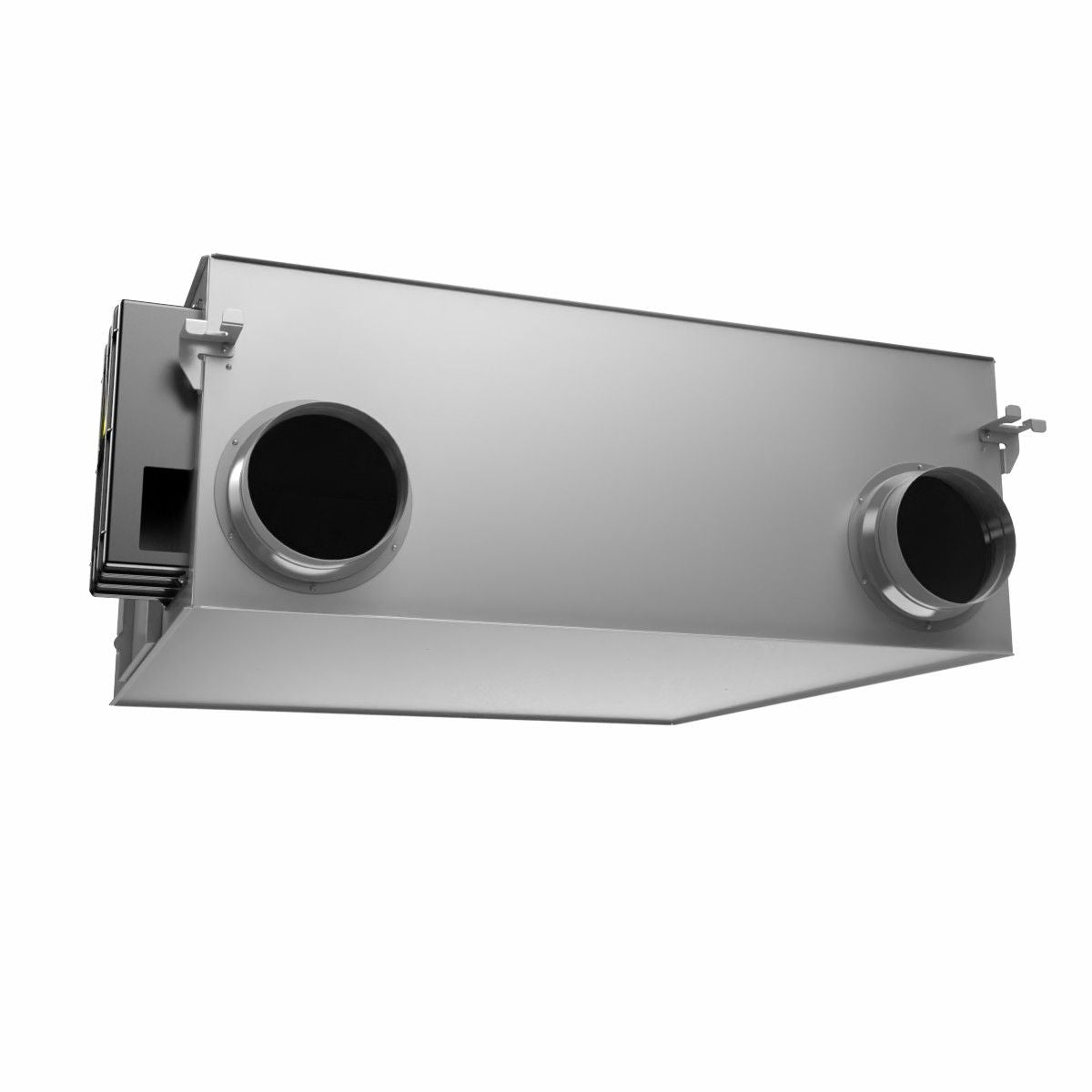

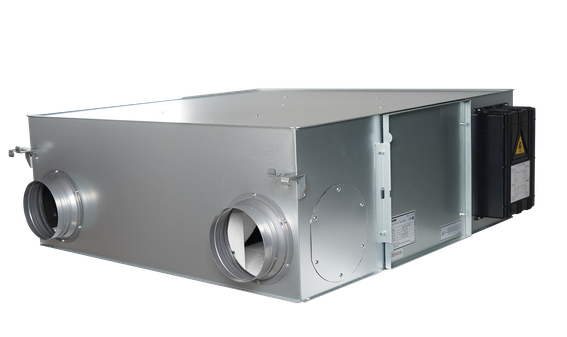

Heat Recovery Unit CFA 250 C

Heat Recovery Unit CFA 250 C

£1,608.90
£1,608.90
Sale Sold out
Tax included.

253757261

Low stock: 3 left

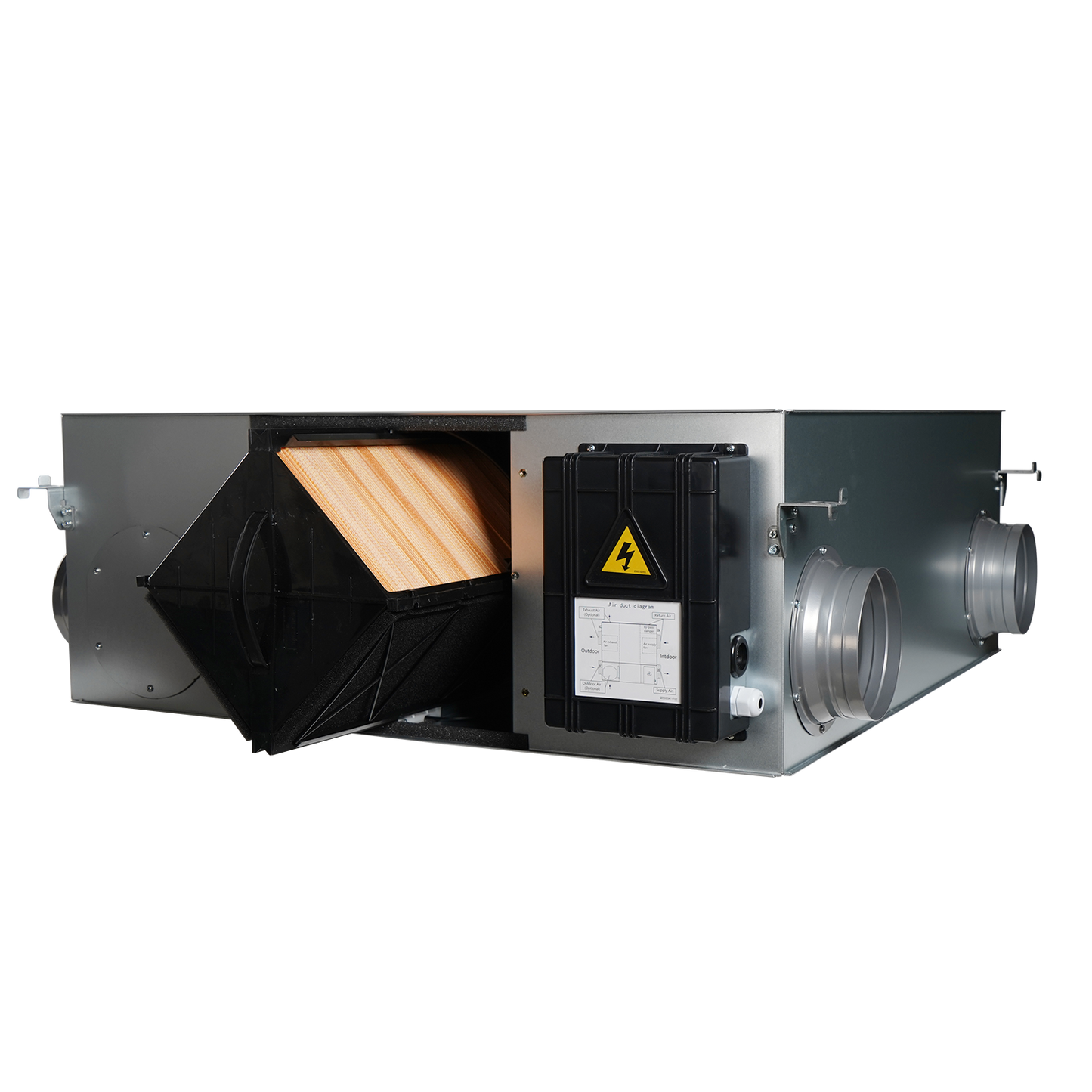

A recuperator designed to ensure your living space is always filled with fresh, revitalised air, our system not only improves the air quality in your home, but also saves energy, making it an environmentally friendly choice for modern homes.

TECHNICAL DATA:

  • Rated voltage: 220-240 V
  • Power consumption: 62 W
  • Capacity: 250 m3/h
  • External pressure: 85 Pa
  • Cooling: 68-83 %
  • Heating : 70-83 %
  • Weight: 23 kg

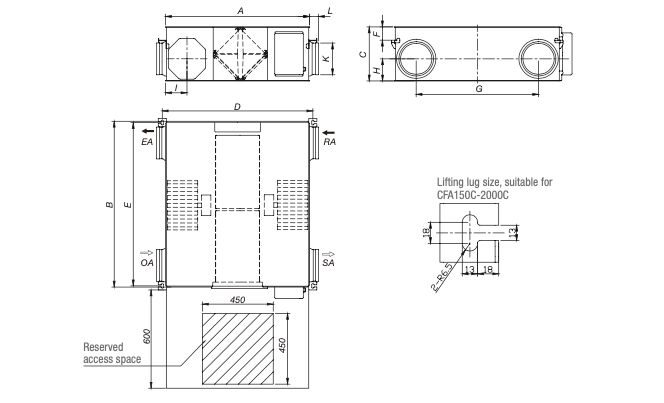

Recuperator dimensions
  • A 780 mm

  • B 735 mm
  • C 289 mm
Dimensions of handle
  • D 819 mm

  • E 719 mm

  • F 78 mm


Channel distance
  • G 526 mm

  • H 95 mm

  • I 116 mm

Air inlet/outlet:

  • K 144 mm

  • L 58 mm




FEATURES:

  • Wide airflow range from 150 to 2000 m³/h.
  • DC motor in plastic housing, 10 speeds.
  • Optional supply air cleaning with main filter (G3) and medium filter (F7).

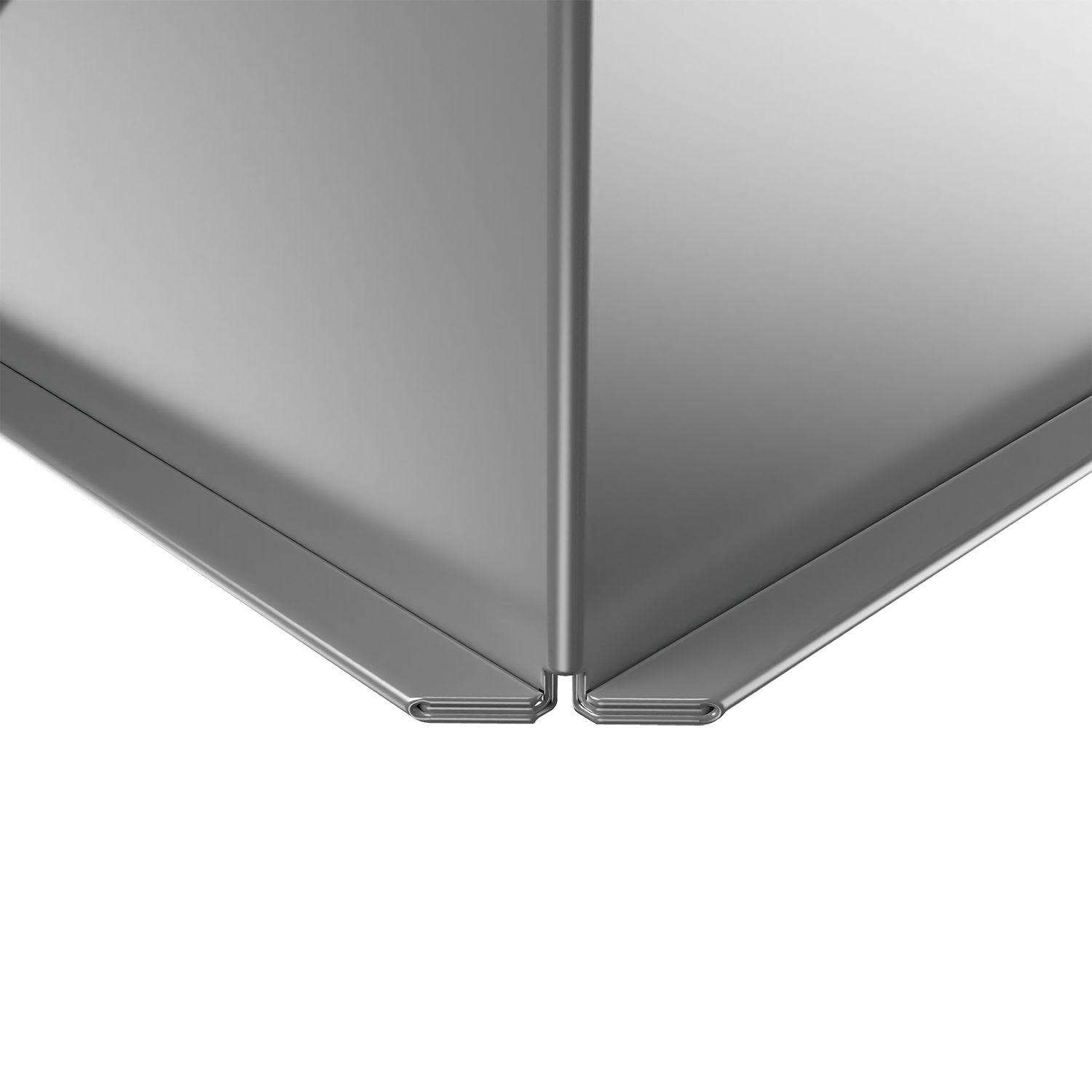

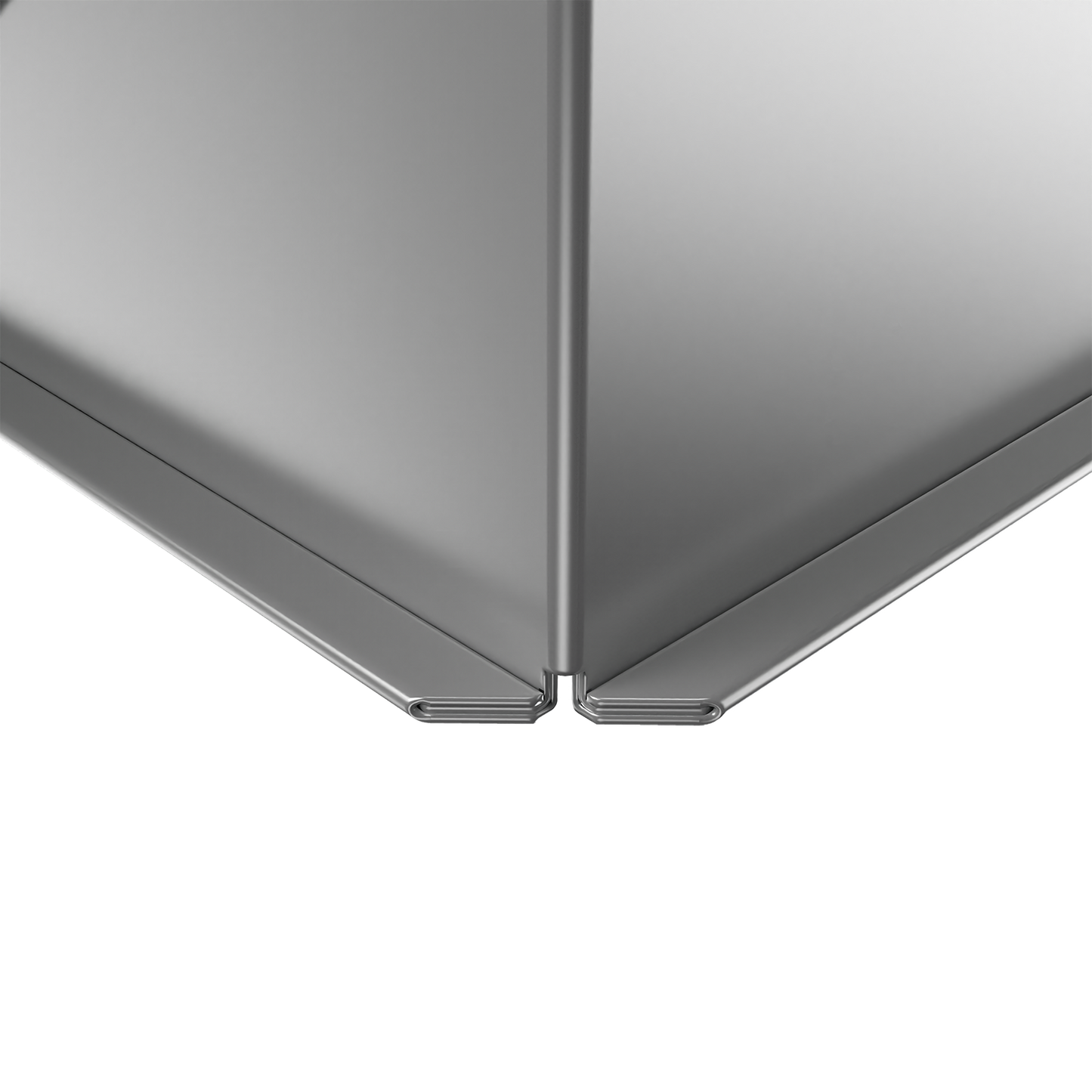

  • Occlusion edge sealing technology.

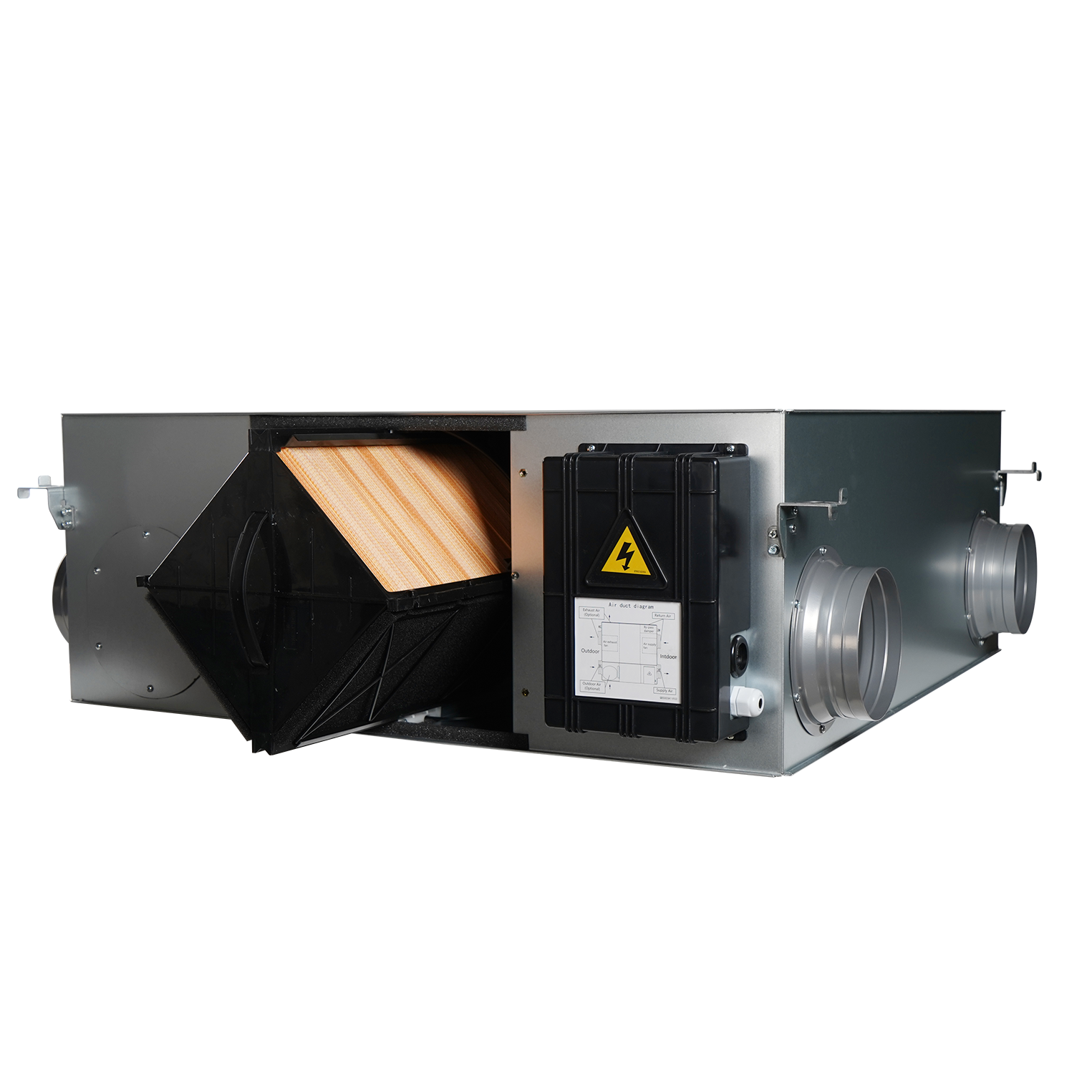

  • Fifth generation high-efficiency heat exchanger. Reserved side ports for OA and EA, flexible installation.
  • Automatic bypass.
  • Two types of installation to suit the room.

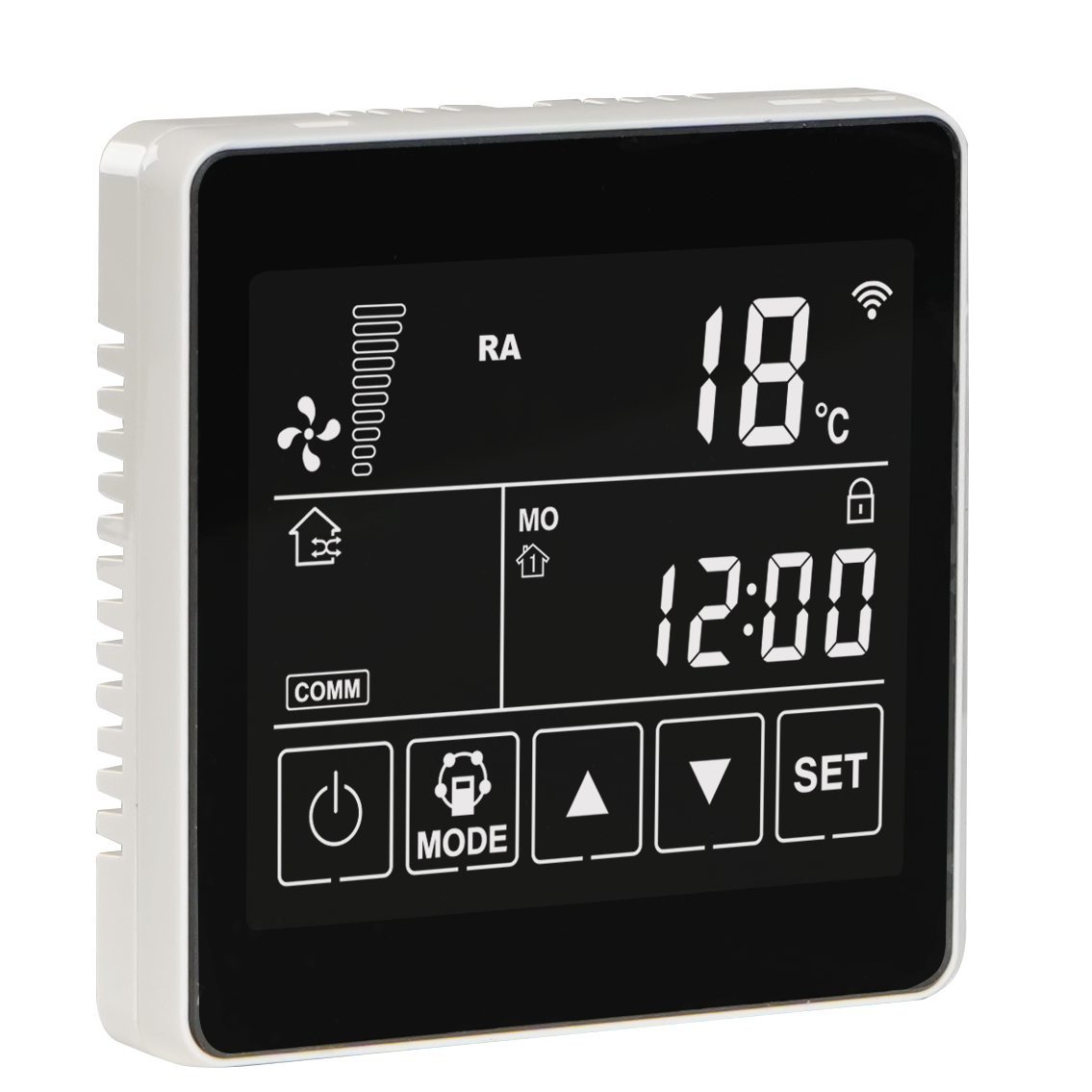

  • Android/ IOS intelligent control system.
  • Energy efficiency class A+ or A in accordance with EU NO. 1253/2014.
